CS11 Recovery & Dewatering Unit

This integrated machine combines hydrocyclone classification, fine sand recovery and high-frequency dewatering, developed to solve fine sand loss problems in sand washing plants.

Key highlight: It can recover ultra-fine sand up to 200 mesh (particles ≥0.075mm).

Different from conventional recovery equipment that cannot capture ultra-fine particles, our unit greatly reduces fine sand loss in wastewater, raises output, adjusts fineness modulus and optimizes stone powder content of finished sand.

It consists of wear-resistant slurry pump, high-efficiency hydrocyclone, PU high-frequency dewatering screen and tank. The slurry is pumped into hydrocyclone for particle separation. Recovered ultra-fine sand falls onto dewatering screen for high-frequency vibration dewatering. The discharged sand has low moisture content and can be directly loaded or stacked.

Compact footprint, long service life of wear parts and low maintenance. It cuts pond cleaning cost and improves profit. Widely matched with bucket wheel sand washer, spiral sand washer for manufactured sand, river sand and tailings slurry ultra-fine sand recovery.

Fine Sand Recovery & Dewatering Integrated Machine, recovers ultra-fine sand within 200 mesh, stops fine sand loss.

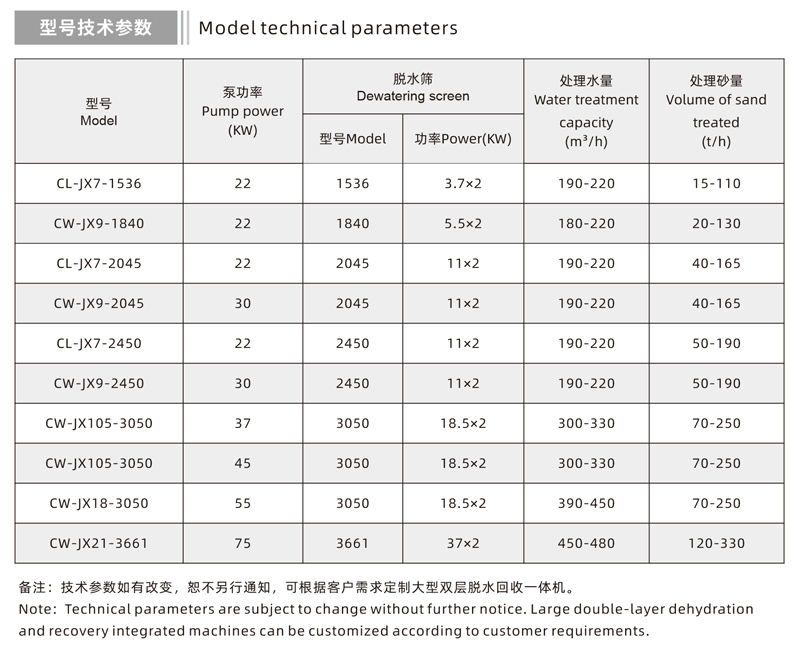

Technical Parameters

Our fine sand recovery & dewatering integrated machine can effectively recover fine sand within 200 mesh and supports customized production as required.
