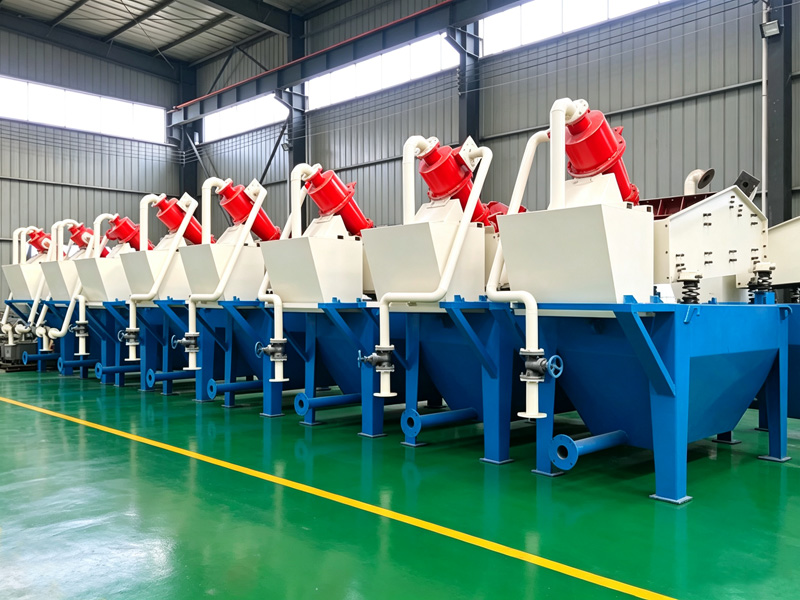

Fine Sand Recycler

The fine sand recycling machine recovers 0.15mm fine sand and serves manufactured sand lines, sand washing lines, tailings and slurry separation projects.

Most wet sand production lines suffer heavy fine sand loss (over 20% for ≤0.35mm particles). This cuts output, ruins sand gradation, raises fineness modulus and lowers sand quality. Poor sand increases cement costs in concrete, while discharged fine sand wastes resources and pollutes the environment.

Our HC series recycling equipment integrates overseas advanced tech to solve fine sand loss. This eco-friendly machine requires no extra water and recovers over 85% lost sand from wastewater. Recovered sand can be blended with finished sand or stored as premium aggregate, lifting customers’ total benefits by over 15%.

It fits hydropower aggregate processing, glass raw material lines, manufactured sand plants, dry tailings discharge, coal slime recovery and slurry purification projects, perfectly solving fine sand recovery troubles.

Technical Parameters

Model	Pump （mm）		Cyclone specification(mm)	Dewatering screen			Handling capacity (m3/h)	Weight（kg)
	Power（Kw）	Size（Inch)		Size	Acreage（㎡)	Power（kw)
HC-06-250	11	3”	250	0.6×2.0	1.2	2x0.75	30-80	4500
HC-08-300	11	3”	300	0.8×2.0	1.6	2x0.75	80-100	4900
HC-10-350	15	3”	350	1.0×2.0	2	2x0.75	100-120	7515
HC-10-500	18.5	4”	250×2	1.0×2.0	2	2x0.75	110-170	8210
HC-12-600	18.5	5”	300×2	1.2×2.5	3	2x1.5	160-200	9610
HC-13-700	18.5×2	6”	350×2	1.3×3.0	3.9	2x2.2	200-300	11850
HC-15-900	37	8”	300×3	1.5×3.75	5.625	2x3	300-450	16700

Note: The above technical parameters are for reference only. Please contact us to obtain the latest parameters and quotations.

Working Principle

Special centrifugal pump slag sand washing tank water mixture is conveyed to the cyclone, centrifugal classification concentrate of sand through grit mouth to the vibrating sieve dehydration, after vibrating screen dehydration, effective separation of fine sand and water, a small amount of sand, mud hopper by returning back to the cleaning tank, resulting in a mixture of mixed cyclone reflux, was again sent to the cyclone separator. By changing the pump speed, change of mortar concentration, regulate the overflow of water, replace the sand nozzle to achieve the fineness modulus adjustment, thereby completing the cleaning, dehydration and grading three functions.

Product Advantages

1、the traditional process of artificial wet sand, artificial sand washing mud, dehydration spiral sand washing machine, artificial sand (especially sand) loss hardly control. With this sand recovery, it can effectively reduce the amount of sand loss and its control in the 5 to 10%. Solves the finished sand fineness high modulus, low powder content of artificial aggregate processing system problems arise.

2、vibrating sieve adopt polyurethane screen which is of longer life and less clogging.

3、polyurethane lined cyclone improve the life of the entire apparatus can be successfully completed slurry concentration and liquid clarification work.

4、the sand recovery system can recycle 85% of fine particulate material, which has unparalleled technical and economic advantages than other equipments.

5、fine particles are fully recovered, reducing the workload of the sedimentation tank, reducing the costs of cleaning up the sedimentation tank;

6、fine sand recovery system reduces the fine material natural pile time, direct transport, supply market.

7、we can design appropriate solutions sand recovery system according to different user requirements

8、the sand recovered after dehydration can be directly stacked or combined with other finished sand pile.

Our company is specialized in producing sand processing equipment and sand recycling machine including: crusher, sand screening equipment, washing equipment, sand recycling equipment, sand making line, welcome you visit us!
