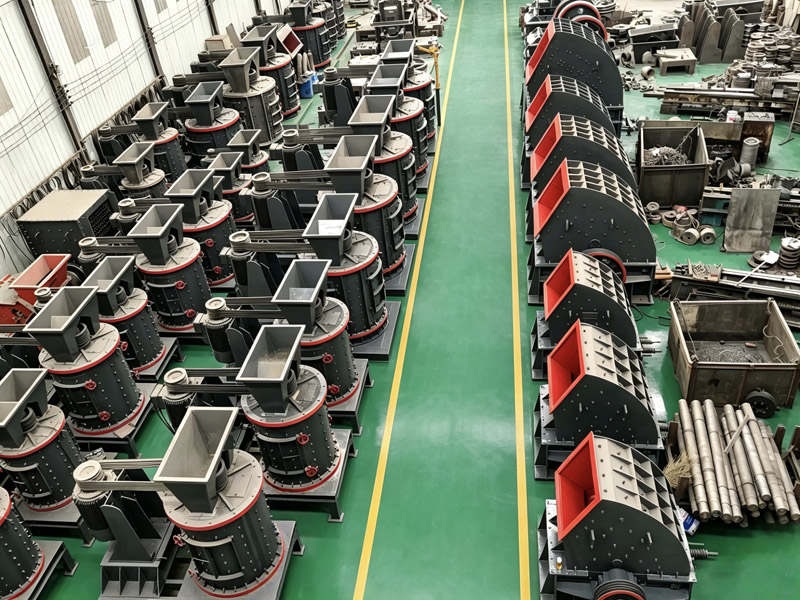

Vertical Shaft Sand Making Machine

Vertical Shaft Sand Making Machine is a new-generation sand maker optimized and developed by combining domestic and international advanced fine crushing technologies with superior performance.

Features of Vertical Shaft Sand Making Machine：Large crushing ratio; high output, several times higher than similar domestic products; high efficiency and energy‑saving; wear‑resistant parts are made of multi‑alloy wear‑resistant materials with high hardness and high toughness, whose service life is increased several times; rotational speed is adjustable to meet requirements of different finished product fineness for various materials.

This machine features a large crushing ratio with freely adjustable output particle size, which will not be affected by the wear of plate hammers and liners. There is no screen bar at the bottom, so it seldom gets blocked when crushing materials with high moisture and mud content. Both dry and wet crushing operations are available. A high-strength magnet is installed at the feeding end to block iron impurities from entering the machine and prevent equipment damage.

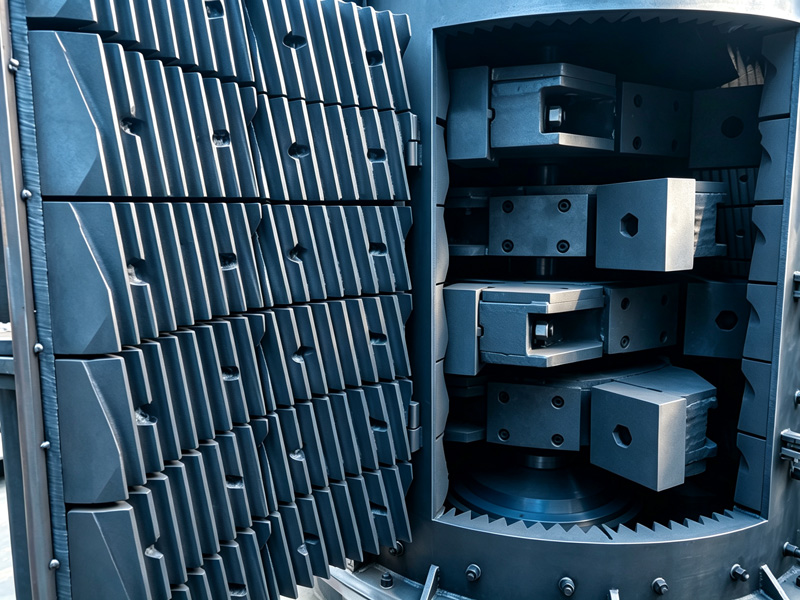

Thanks to the vertical shaft structure, materials undergo multiple crushing processes, ensuring a high finished sand yield while maintaining large throughput. The rotor of the vertical plate hammer sand maker adopts a unique structure, so the rotor suffers barely any abrasion during centrifugal crushing. The heavy cubic plate hammer can be used on multiple sides. The vertical layout is equipped with multiple large maintenance doors, enabling easy replacement of wear parts without lifting equipment.

The heavy-duty vertical shaft sand making machine is an efficient new sand production equipment featuring environmental protection, energy conservation, low overall investment, low comprehensive operation cost, high return rate and superior finished aggregate quality.

Working Principle

Materials fall evenly into the high-speed rotating crushing chamber through the upper distributor. Under the high-speed impact of hammers and centrifugal force, materials are thrown out at high velocity to collide and grind against surrounding liners. After repeated hammer impacts and material-to-material collisions, the materials circulate in eddy currents formed between plate hammers and liners for multiple rounds of collision and friction until crushed.

Materials go through four identical crushing cycles from top to bottom before being directly discharged from the bottom. This forms a closed-circuit multiple crushing loop. The finished particle size meeting customer requirements is controlled by adjusting the rotating speed and matching screening equipment.

Technical Parameters

Model	Barrel diameter (mm)	Throughput (t/h)	Feed Size (mm)	Output size (mm)	Power (kw)	Size (W×L×H)
HC-800	800	10-15	＜100 (Recommended ≤25mm)	＜5 80-95%	37-45	2100×1200×1700
HC-1000	1000	15-25	＜120 (Recommended ≤30mm)	＜5 80-95%	45-55	2600×1400×1900
HC-1250	1250	20-40	＜150 (Recommended ≤30mm)	＜5 80-95%	75-110	2800×1600×2100
HC-1500	1500	40-80	＜180 (Recommended ≤35mm)	＜5 80-95%	132-160	3100×1900×2200
HC-1750	1750	50-120	＜200 (Recommended ≤35mm)	＜5 80-95%	200-220	3710×2360×2390
HC-2000	2000	80-150	＜220 (Recommended ≤40mm)	＜3 80-95%	220-250	4100×2660×2620

Note: All technical parameters above are for reference only; custom specifications can be provided as requested.

Product Features

1、Simple and reasonable structure with low operating cost. Adopts gravity feeding and centrifugal rock-on-rock crushing principle, straight-through design for less equipment wear.

2、Four-stage impact crushing, featuring high crushing rate, high efficiency and energy saving.

3、Integrates crushing, fine crushing, particle shaping and coarse grinding functions. The finished sand yield exceeds 90%, and coarse powder below 120 mesh can be produced.

4、Slightly affected by material moisture content; the allowable moisture content reaches around 8%, and water can be added during ore processing.

5、Operating noise below 75 decibels. Equipped with dust-proof devices to minimize dust pollution.

6、Specially suitable for crushing medium-hard and high-hardness materials, such as quartz stone, river pebbles, granite, basalt, etc.

7、Cubic finished products with high bulk density and minimal iron contamination. The ratio of powder to granules in finished products is adjustable and controllable.

8、Heavy-duty plate hammers usable on four sides; self-lining structure reduces wear. Three large maintenance doors for easy overhaul and maintenance.

9、Low operating power, lower investment and operation costs.

10、Consumes fewer spare parts and delivers higher output compared with hammer crushers; no material blockage and more cost-effective than fine crushers; higher output and lower power consumption than impact crushers; lower price and better particle shape than cone crushers.

Common models of vertical plate hammer sand making machine: Model 800, 1000, 1250, 1500, 1750, 2000, etc.
