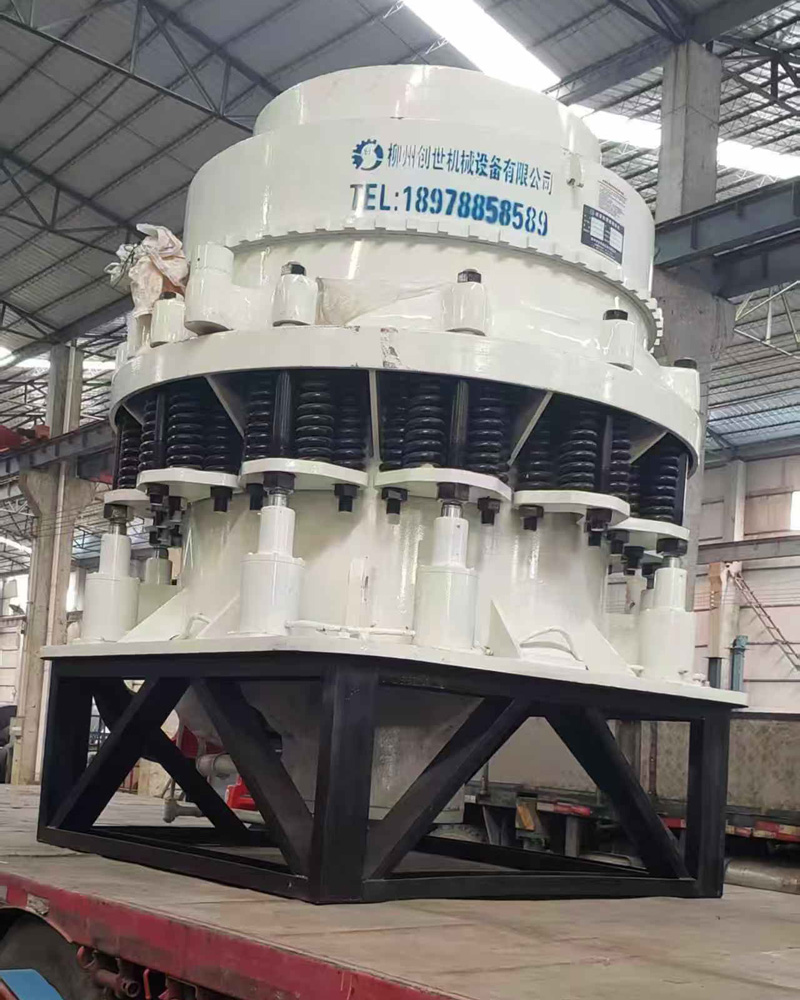

Compound Cone Crusher

The PSGB‑series Compound Cone Crusher is a cost‑effective crushing equipment for medium‑to‑high hardness rocks. It features large crushing ratio, high efficiency, high throughput, low operating cost and convenient adjustment. Each crusher is available with multiple cavity types. Users can select different cavity types according to various application requirements.

Technical Parameters

Type	Model	Cavity Type	Diameter ofcone(mm)	Adjusting Range of Discharge Opening (mm)	Recommend feeding size when the minimum output size(mm)	Max feed size  (mm)	Capacity(t/h)	Main Motor(kw)	Weight (kg)	L×W×H (mm)
2'FT	PSGB-0607	Standard fine	600	6-38	70	60	16-50	30	4500	2195×1158×1651
2'FT	PSGB-0609	Standard medium	600	10-38	95	80	18-65	30	4500	2195×1158×1651
2'FT	PSGB-0611	Standard coarse	600	13-38	110	90	22-70	30	4500	2195×1158×1651
2'FT	PSGD-0603	Short head fine	600	3-13	35	30	9-35	30	4500	2195×1158×1651
2'FT	PSGD-0605	Short head coarse	600	5-16	50	40	22-70	30	4500	2195×1158×1651
3'FT	PSGB-0910	Standard fine	900	9-22	102	85	45-91	75	9980	2656×1636×2241
3'FT	PSGB-0917	Standard coarse	900	13-38	175	150	59-163	75	9980	2656×1636×2241
3'FT	PSGB-0918	Standard super coarse	900	25-38	178	150	118-163	75	9980	2656×1636×2241
3'FT	PSGD-0904	Short head fine	900	3-13	41	35	27-90	75	10530	2656×1636×2241
3'FT	PSGD-0906	Short head medium	900	3-16	76	65	27-100	75	10530	2656×1636×2241
3'FT	PSGD-0907	Short head coarse	900	6-19	102	85	59-129	75	10530	2656×1636×2241
4.25'FT	PSGB-1313	Standard fine	1295	13-31	137	115	109-181	160	22460	2983×1866×3156
4.25'FT	PSGB-1321	Standard medium	1295	16-38	210	178	132-253	160	22460	2983×1866×3156
4.25'FT	PSGB-1324	Standard coarse	1295	19-51	241	205	172-349	160	22460	2983×1866×3156
4.25'FT	PSGB-1325	Standard super coarse	1295	25-51	259	220	236-358	160	22460	2983×1866×3156
4.25'FT	PSGD-1306	Short head fine	1295	3-16	64	54	36-163	160	22590	2983×1866×3156
4.25'FT	PSGD-1308	Short head medium	1295	6-16	89	76	82-163	160	22590	2983×1866×3156
4.25'FT	PSGD-1310	Short head coarse	1295	8-25	105	89	109-227	160	22590	2983×1866×3156
4.25'FT	PSGD-1313	Short head super coarse	1295	16-25	133	113	209-236	160	22590	2983×1866×3156
5.5'FT	PSGB-1620	Standard fine	1676	16-38	209	178	181-327	250	43270	3941×2954×3771
5.5'FT	PSGB-1624	Standard medium	1676	22-51	241	205	258-417	250	43270	3941×2954×3771
5.5'FT	PSGB-1626	Standard coarse	1676	25-64	269	228	299-635	250	43270	3941×2954×3771
5.5'FT	PSGB-1636	Standard super coarse	1676	38-64	368	313	431-630	250	43270	3941×2954×3771
5.5'FT	PSGD-1607	Short head fine	1676	5-13	70	60	90-209	250	43870	3941×2954×3771
5.5'FT	PSGD-1608	Short head medium	1676	6-19	89	76	136-281	250	43870	3941×2954×3771
5.5'FT	PSGD-1613	short head coarse	1676	10-25	133	113	190-336	250	43870	3941×2954×3771
5.5'FT	PSGD-1614	Short head super coarse	1676	13-25	133	113	253-336	250	43870	3941×2954×3771
7'FT	PSGB-2127	Standard fine	2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
7'FT	PSGB-2133	Standard medium	2134	25-51	334	284	862-1424	400	86730	4613×3302×4638
7'FT	PSGB-2136	Standard coarse	2134	31-64	369	314	1125-1814	400	86730	4613×3302×4638
7'FT	PSGB-2146	Standard super coarse	2134	38-64	460	391	1252-1941	400	86730	4613×3302×4638
7'FT	PSGD-2110	Short head fine	2134	5-16	105	89	218-463	400	89500	4613×3302×4638
7'FT	PSGD-2113	Short head medium	2134	10-19	133	113	404-580	400	89500	4613×3302×4638
7'FT	PSGD-2117	Short head coarse	2134	13-25	178	151	517-680	400	89500	4613×3302×4638
7'FT	PSGD-2120	Short head super coarse	2134	16-25	203	172	580-744	400	89500	4613×3302×4638

Note: The above technical parameters are for reference only. Actual performance shall be subject to on‑site working conditions.

Our PSGB‑series Compound Cone Crusher features wide application range. It is a cost‑effective equipment specially for medium‑to‑high hardness rock crushing. Please feel free to contact us for more technical parameters.
