Mobile Construction Waste Crushing Station

Construction waste can be processed with either mobile crushing stations or fixed crushing equipment, which we will introduce separately as follows.

Both fixed and mobile construction waste crushers feature basically identical technological processes and equipment configurations. Their differences mainly lie in investment cost, infrastructure requirements, mobility, as well as minor disparities in production capacity.

There are two working scenarios for construction waste crushing:

1、Large lumps of construction waste mixed with steel rebars, which need crushing and screening for comprehensive recycling;

2、Small pieces of construction waste without steel rebars, which only require simple crushing for reuse.

For large construction waste containing steel rebars that needs crushing, screening and comprehensive recycling, the recommended process is: Feeder + Jaw Crusher + Large-feed Impact Crusher + Vibrating Screen. Magnetic separators shall be installed after both the jaw crusher and impact crusher to remove steel rebars.

For small construction waste free of steel rebars, a simplified configuration of Feeder + Heavy Hammer Crusher or Impact Crusher is applicable. A screening unit can be equipped or omitted according to customer demands.

Optimal crushers for construction waste treatment cover jaw crushers, impact crushers, heavy hammer crushers, standard hammer crushers and double-stage crushers. The specific model is determined based on each customer’s actual working conditions.

The hourly output capacity is customized to customer requirements. Before selecting construction waste crushing equipment, we need to confirm the following information from customers:

1、Conditions of construction waste: whether steel rebars are contained, and the maximum particle size of raw materials. Photos and videos are preferred, and on-site investigation is available when necessary.

2、End application of crushed finished materials, such as backfilling, recycled aggregate production, brick making, manufactured sand production, together with required finished particle sizes. Configurations vary greatly for different applications.

3、Required hourly throughput in tons, investment budget, and preference for mobile or fixed crushing solutions.

Only after fully collecting the above information can we design matching equipment schemes and provide quotations for customers.

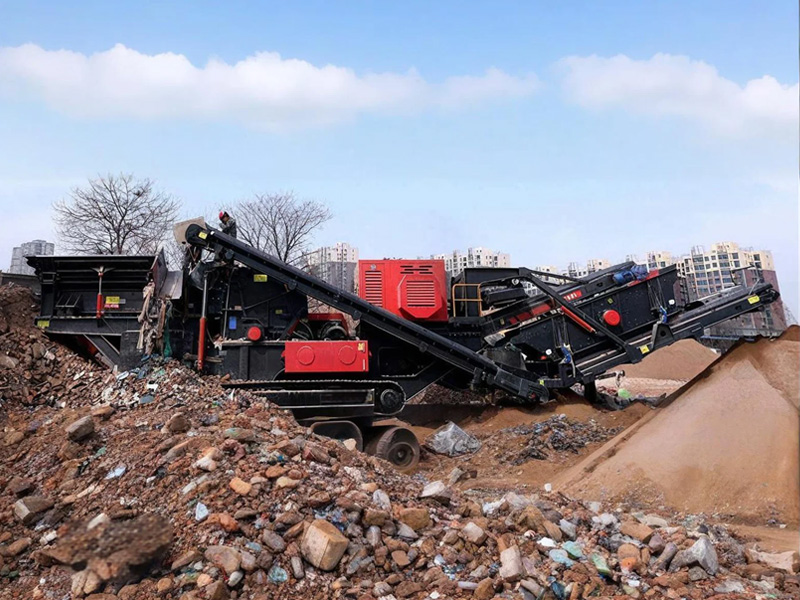

Mobile construction waste crushers can be customized to customer requirements, available in crawler-type and wheel-type models. The common configurations are listed below:

1、One unit consisting of feeder + jaw crusher, plus a separate unit of impact crusher + screening equipment;2、One integrated all-in-one unit: feeder + impact crusher + screening machine;

2、One integrated all-in-one unit: feeder + heavy hammer crusher + screening machine;

3、One unit with feeder + heavy hammer crusher / impact crusher, with screening equipment as an independent standalone unit.

Common equipment equipped on mobile crushing stations includes feeders, jaw crushers, impact crushers, heavy hammer crushers, vibrating screens and belt conveyors, which can be reasonably combined according to customers’ actual production needs.

For power supply systems, mobile crushing stations can adopt industrial mains electricity, generator sets, or other power modes customized as requested by customers.

Mobile crushing stations require no foundation construction and can be relocated at any time, so they have gained great popularity among customers in recent years. They are widely applied to process construction waste, tunnel muck, cement pavement debris, river pebbles and other stone materials.

We provide full customization services, offering crawler mobile units, wheel mobile units, frame-type crushing plants and single standalone crushers. Please feel free to contact us anytime if you have any demands.
